Traditional IT Overview

How Do Websites Work?

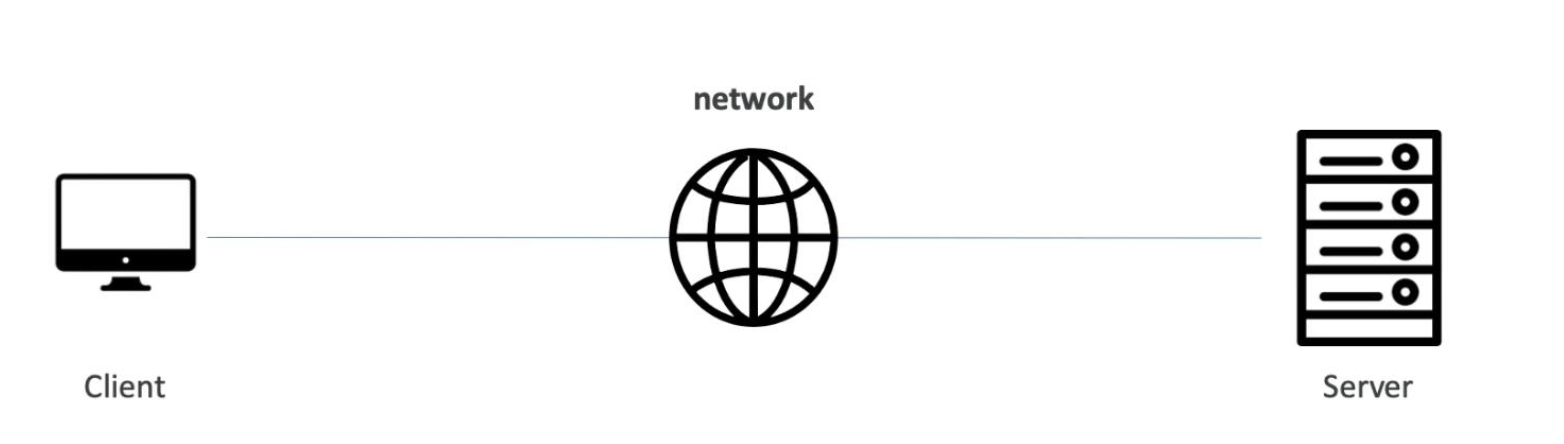

  • We have a server hosted somewhere, and we as a web browser (Client) want to get an access to
    that server to visualize a website

  • What we are going to do as a client is, use a network

  • A network is between ourselves and the server

  • The client will find the network and will use the network to route the packets, the data into the
    server

  • Then the server will reply to us, and we will get the response, and we can view a website

workshop scene

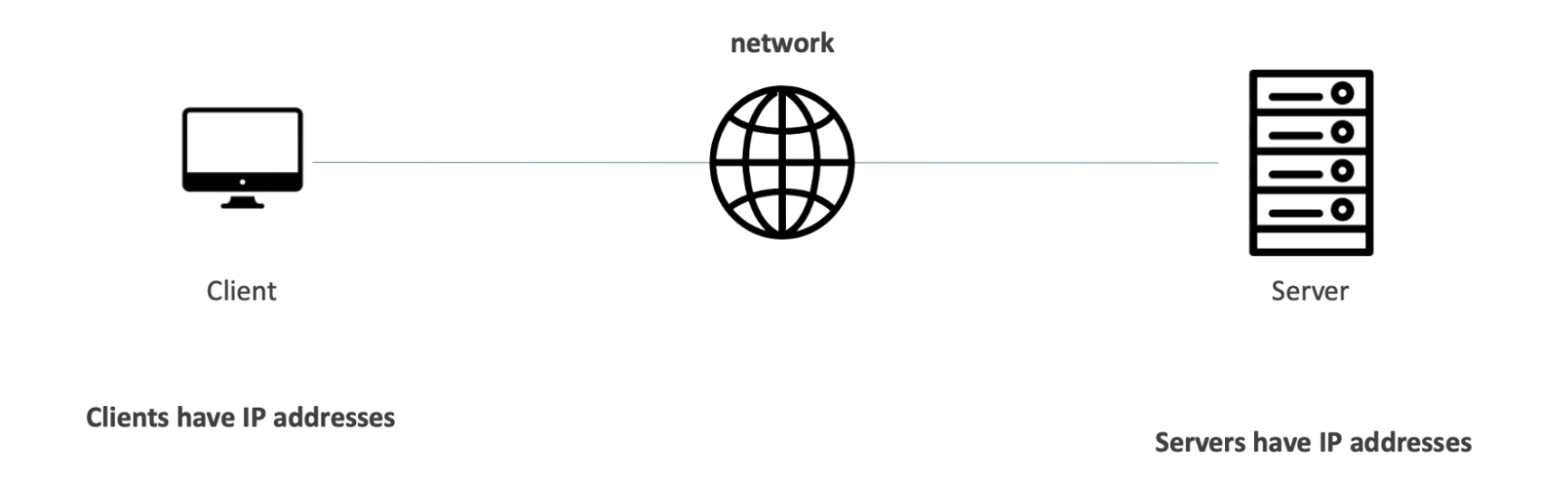

  • Now for the clients to find the server and the server to find the clients, you need to have IP
    addresses.

  • So clients will have the IP addresses and a server will also have an IP address.

workshop scene

  • The idea behind this is when you use an IP address, you can send a request to wherever you want to the server you want, and the server can know how to find you back.

  • This is very similar to when you are writing some letters to your friend. For example, you would write a letter, and that would be your data.

workshop scene

  • You would be the client sending the letter (you put it in the mailbox)

  • The network would be the network of the post office

  • Then the post office will use the network and

    • The address you put on the letter to route the letter to the destination (which is in this case, the
      server)

  • And if your correspondent wants to reply you back, they can use the address that you put on the
    back of the envelope to write you back, and again use the same network to get the letter back to
    you.

  • So servers are just like the network of your mail.

What is a server composed of?

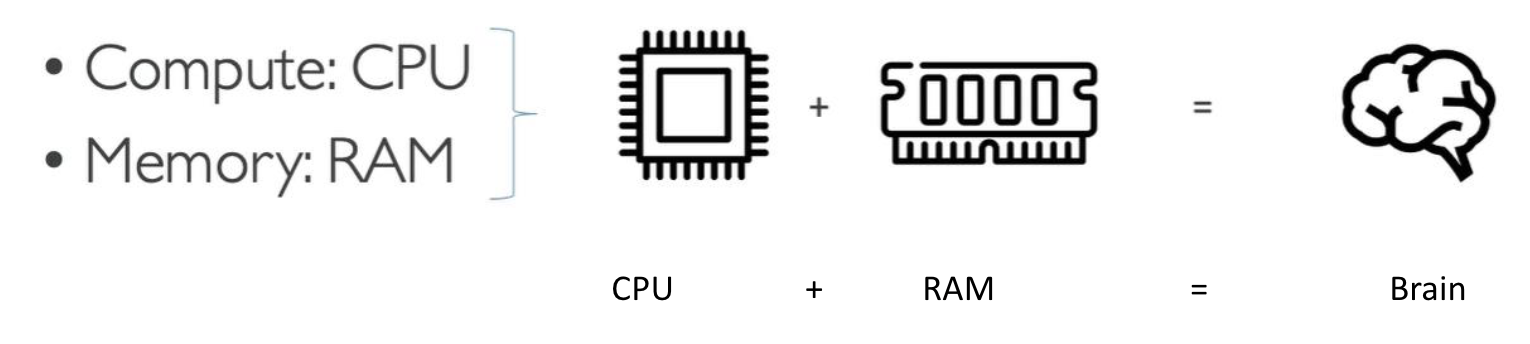

  • Server is going to contain a CPU & RAM
    • CPU is nothing but a little piece which does the computations. It will be helpful to do some calculations and find the results
    • Server also needs RAM (or memory). This is going to be very, very fast memory, which will allow us to store information and retrieve it very quickly
    • When we have a CPU and a memory bar, what do we get? We get the brain. Think of it like this:
      • Whenever you are thinking → you are actually making computations
      • When you retain some information → these are the memories in your brain
workshop scene

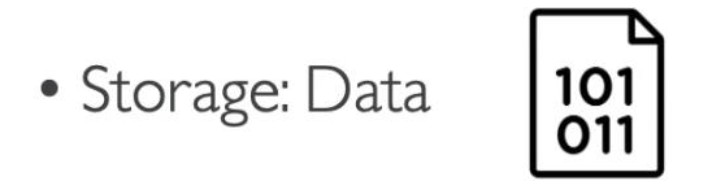

  • We also need to have long-term storage of data
    • In computers, we have some special storage to store data, for example, files
workshop scene
  • Then if we want the data to be stored in a more structured way,
    • We are going to use a database
    • A database is going to be data formatted in a way that we can easily search it and query it.
workshop scene
  • Finally, we are going to have some networking aspect, so it is going to be:
    • Routers
    • Switch
    • DNS server

So in summary, the server will have aspects of:

  1. Compute
  2. Memory
  3. Storage (can be considered as Database)
  4. Networking aspect

These are important because the cloud is going to be giving these things for us on demand.

IT Terminology

  • Network is bunch of:
    • Cables
    • Routers
    • Servers

  • That are going to be connected with each other

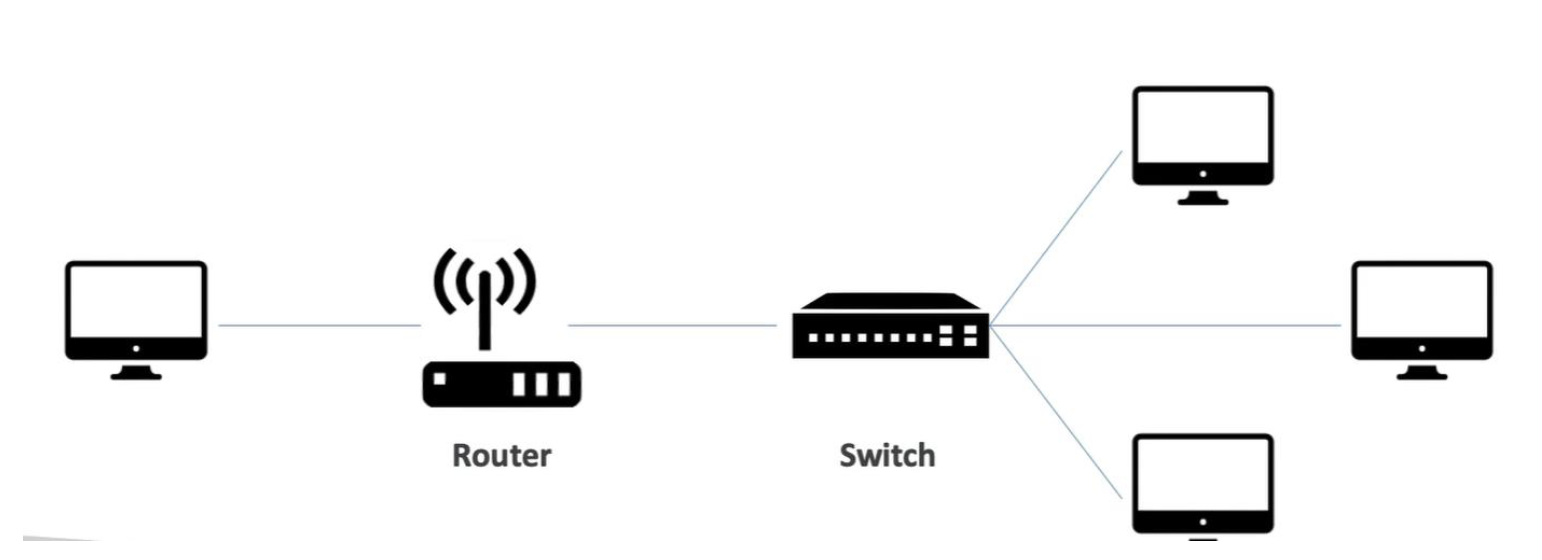

  • Router: It is a specific device that will forward the data packets between computer in the networks, and they will know where to send the packets on the internet, just like your post delivery service

  • Now we have a packet and it arrives at the destination, there is a switch, and the switch will send the packet to the correct client on your network.

  • Switch: Takes a packet and send it to the correct server / Client on your network. Click on this link to learn more about Switch & Router.
workshop scene

Traditionally, how IT infrastructure is built?

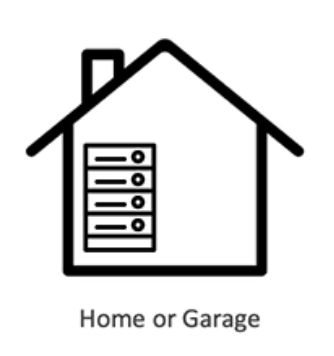

When people used to start their websites or companies before, they used to do it in their home or their garage. They would literally go to store, buy a server, and they put the server in their home. (Google was started in Garage).

workshop scene


Now as the website grows, you need to add more and more servers to serve that demand, and so your home starts to be filled with servers → this is bad isn’t it??

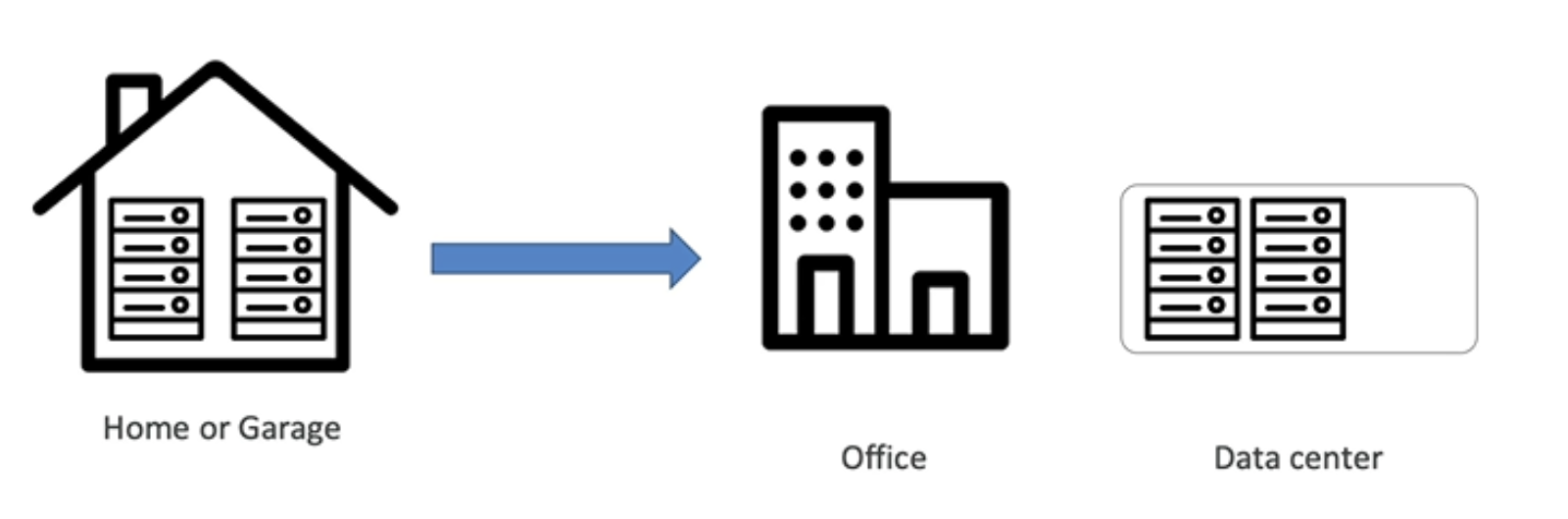

Your company grows bigger, you are generating some money. Now you plan to move to your own office and decide to allocate a special room which is going to be called a data center.

workshop scene


In a data center, you are going to have, again, your servers, and you are going to be able to scale them by adding and purchasing more and more servers.
Now this worked, and this worked for so many years……But there are problems with it like:

  1. You have to pay rent for the data center
  2. You have to pay for Power Supply (Servers need electricity), cooling (Servers can get Hot) and maintenance (sometimes the servers can break down so you need someone to maintain it).
  3. (If you want to add or replace servers it will take a lot of time and then you have to hook them up in your center) Adding or replacing hardware takes time
  4. Scaling is limited (If tomorrow if you are getting 10 times bigger, you are going to need 10 times more servers, but you may not have the time or space to do so)
  5. Hire 24/7 team to monitor the infrastructure in case something goes wrong
  6. How to deal disaster? (earthquake, power shutdown, fire…)

CAN WE EXTERNALIZE ALL THIS???

  • The answer to this is YES, and that will be the Cloud. In the next section we will look into What is Cloud Computing?
